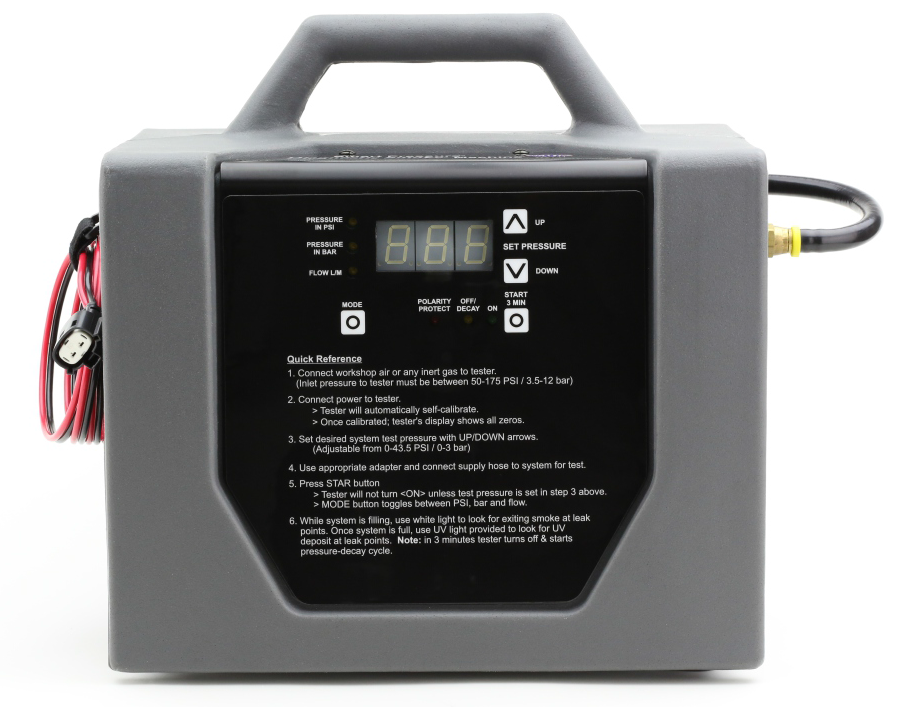

Vacutec WV711 Leak Finder

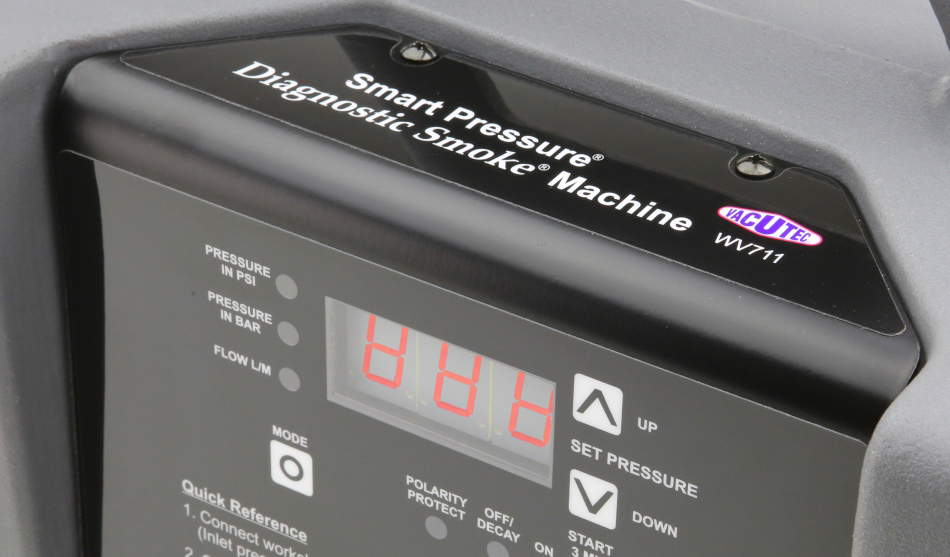

The Smart Pressure® Diagnostic Smoke® Machine is a full featured leak detector, specially designed for turbocharged vehicle systems.

The WV711's Smart Pressure® technology produces the densest visible smoke vapor over the unit's entire range of operating pressure.
Smart Pressure® technology software electronics prevents thinning of smoke density that occurs when conventional units are set at high pressure.
A denser smoke vapor means it's easier to see at leak points.
It also means a faster Ultra Trace UV® dye deposit at the exact location of the leaks, which is essential for UV high pressure leak testing!
You simply can't find all the leaks without it!

Get flyer here

Watch video here

Category:

Description

Smart Pressure® Technology Features.

Contaminant-free Ultra Trace UV® dye solution marks leak spot: essential for high pressure testing

Easy Digital Pressure Setting: no need to fumble with analog regulator

Smart Pressure® technology: automatically delivers densest smoke vapor, regardless of pressure setting

Selection Modes: digital display shows pressure in PSI/bar and flow in LPM

Quantifies Leak: with pressure-decay as well as leak flow rate, regardless of pressure setting

Flexible Gas Source: use with workshop air or any inert gas

Self-Calibrating.



Technical Specifications:
Dimensions h36.8 cm X w34.9 cm X d25.4 cm
Weight 7.7kg
Power 12 Volt DC or 110-220V AC
Inlet Pressure 50-175 psi (3.5-12 bar)
Inlet Gas Source Workshop Air
Any Inert Gas Source
Output Pressure 3-43.5 PSI
(207 mbar-3 bar)
Flow Rate 0-20 LPM

Applications

Designed for turbocharged vehicles: tests entire turbo system

Tests virtually all pressure systems (Do not use on EVAP System)
