TREAD READER HandHeld Device

Description

THE TYRE MEASUREMENT TECHNOLOGY

The patented TREAD READER TM tyre measurement technology creates a detailed 3d scan of each tyre , constructed from 320,000 measurement points, with an accuracy of <0.2mm or 0.008”.

By scanning the full width of the tyre and 75mm around the tyre, TREAD READER devices far surpass the accuracy and reliability of traditional dip gauges and non-contact ‘laser pointer’ measurement devices, producing detailed 3d images which show the condition of the tyre tread with absolute clarity.

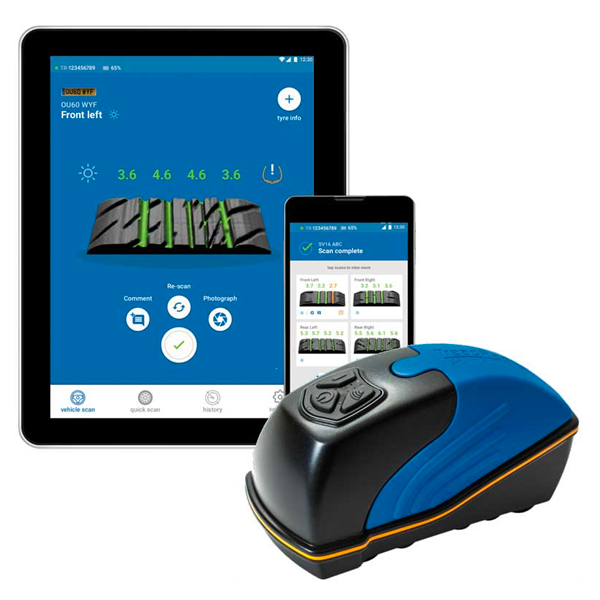

The TREAD READER Hand Held scanner is ideal for all tyre inspection applications in workshops, service centers, inspection lanes, vehicle depots, by mobile tire fitters and for roadside inspection. The TREAD READER Hand Held scanner is flexible and tin be used both in open areas, or a more confined workshop environment.

TREADMANAGER AND TREADREADER APP

Available for Android® and iOS®, the new TREADREADER app is user friendly, guiding you through the scanning process, within a few steps you pair your scanner with your mobile device being able to set details, perform scanning and accessing the saved data.

The powerful algorithms calculate the tyre tread depths generating intuitive 3D colour-coded renders to show the tyre conditions, it also displays tread warning and error alarms for every axle and tyre position.

Fully integrated with TREADREADER HandHeld or DriveOver, the TREADMANAGERTM is a cloud-based tyre management platform designed to improve your service productivity and boost sales. it stores scan, wagon and tyre data in a professional way also allowing the service managers to visualise reports on the number of vehicles scanned, technician activity as well as sales opportunities for tires and wheel alignment.

TECH SPECS

Description

Specification

Dimensions (L x W x H)

180mmx90mmx70mm ≈ 7″x3.5″x28″

Scan zone

50mmx23mm ≈ 2”x0.9”

Maximum tread depth

23mm ≈ 0.9″

Measurement accuracy

< 0.2mm ≈ 0.008”

Laser class

Class 2

Power

5V DC rechargeable battery w/ USB 3.1 Type C / 100-240 VAC

Environmental rating

IP 64

Operating temperature range

0°C to 50°C ≈ 32°F to 122°F

Communication

Bluetooth Low Energy (BLE)
