Description

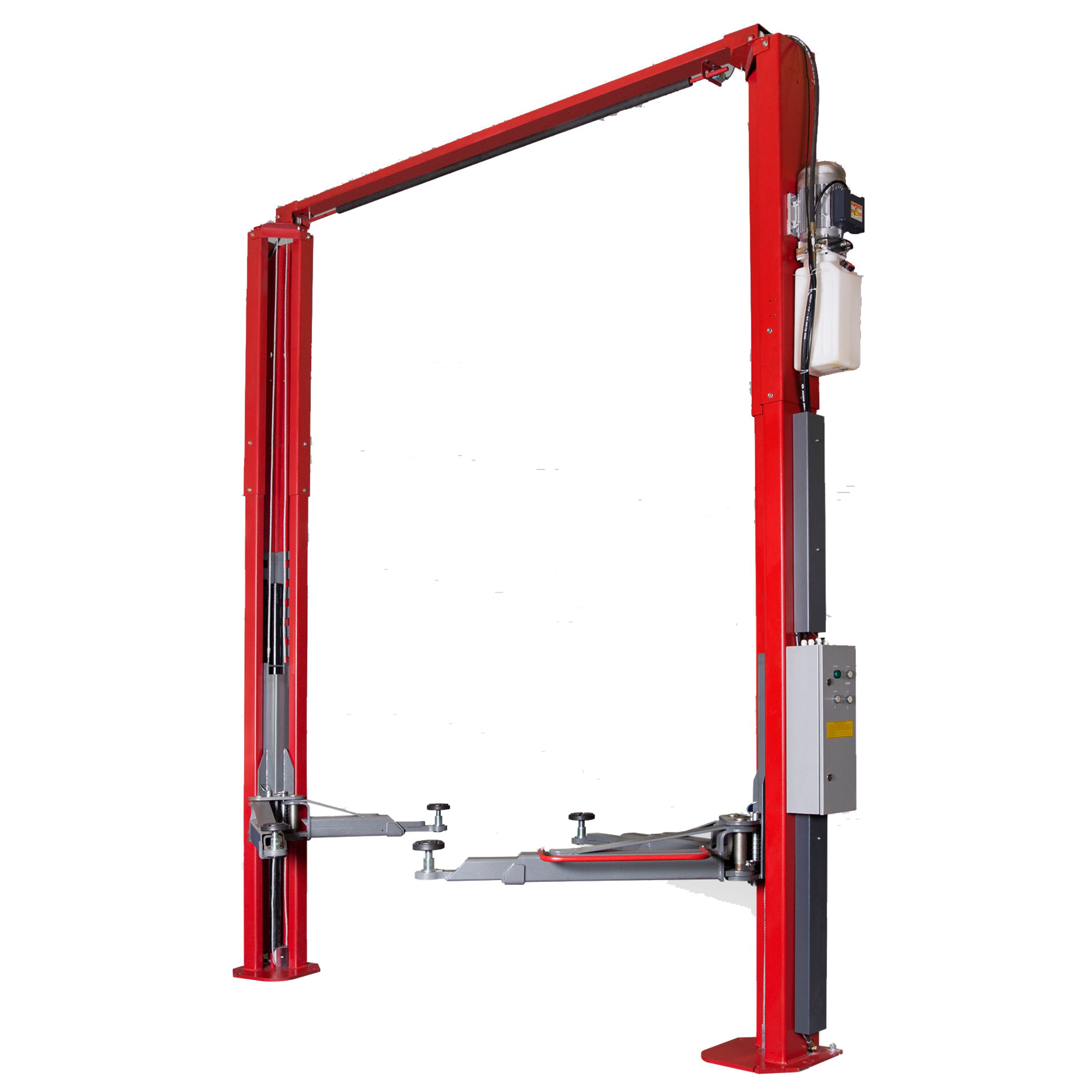

U-T40EF True Asymmetric Clear Floor Two Post Vehicle Lift.

The U-T40EF Two Post Vehicle Lift is an overhead two-post hydraulic type lift, designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm. The lift columns can be extended to 3.910mm height in order to be used in case of height cabinet vehicles.

Safety Features:

1. Reverse pulling cylinder

2. Safety valve for anti-explosion of hydraulic system

3. Synchronization cables

4. High strength safety lock

Product Specifications:

Type: True Asymmetric Clear Floor Two Post Vehicle Lift

Product Code: U-T40EF

Capacity: 4Tones

Lifting height: 1910 mm 75.2″

Min height: 110 mm 4.3″

Max car width: 2340 mm 92.1″

Power supply: 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW

Release: Electric Lock Release

Download Product Brochure:

U-T40EF
