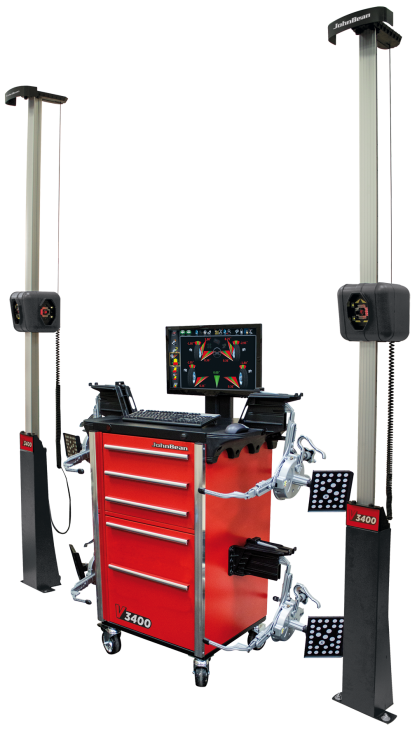

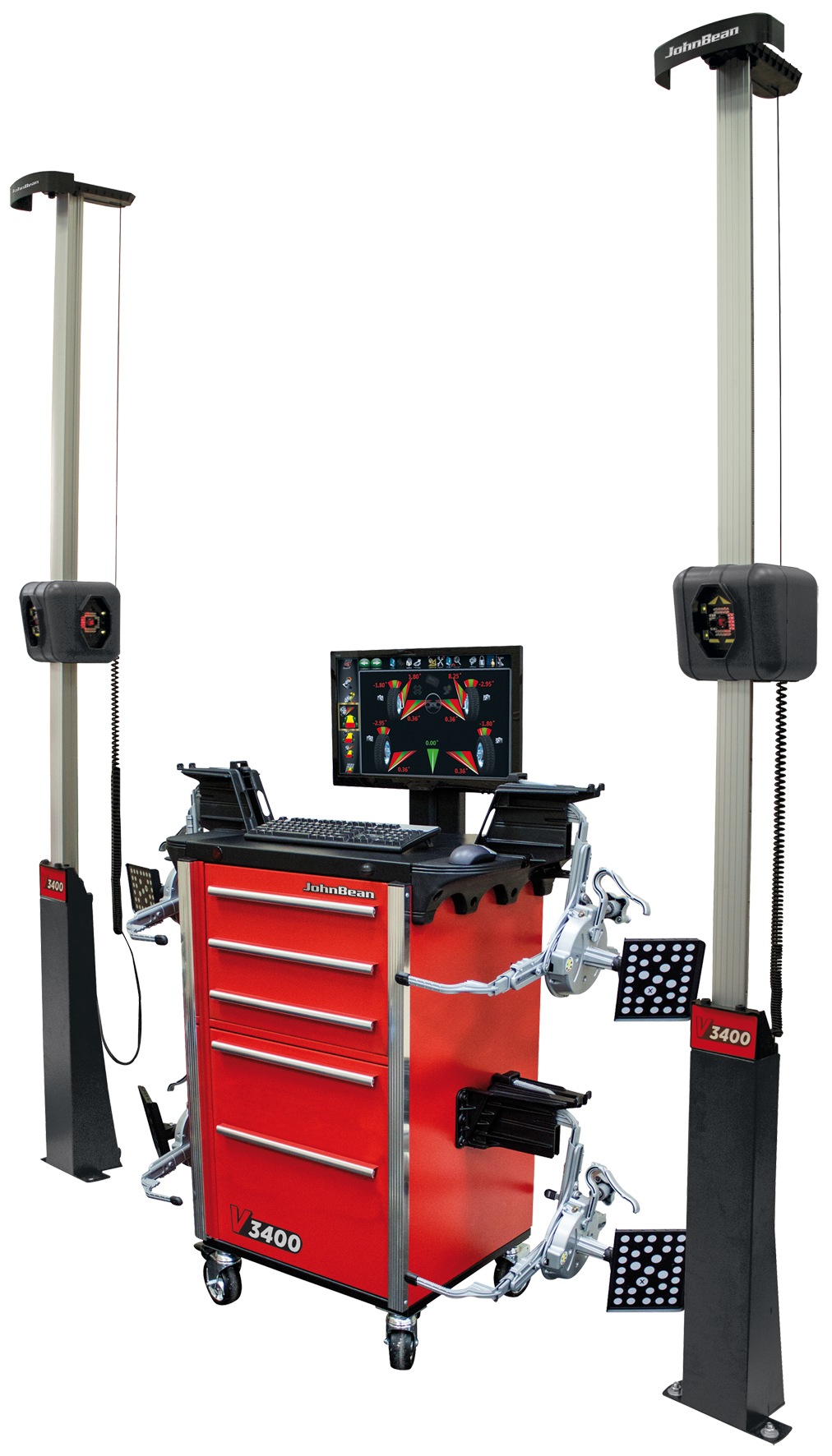

V3400 AC400

WIRELESS 3-CAMERA CAR WHEEL ALIGNER WITH XD TECHNOLOGY.

Product description:

Wireless system provides flexible installation, usage and mobility options. Patented digital camera tracking automatically adjusts to the height of the vehicle.

The V3400 is available with AC400 quick clamps or with universal wheel clamps.

Get flyer here



  • Bluetooth communication eliminates wires, eases installation and maximises mobility
  • Professional results and high productivity
  • Improved DigiSmart technology allows the new high-resolution cameras to automatically, quickly and accurately track the targets
  • 3-Camera design is ideal for installation in drive-through bays
  • High-end control terminal
  • 24” flat-screen monitor
  • New small and lightweight XD targets
  • Universal wheel clamps (AC100) with rim clamping range 11″ – 22″
  • Alternatively self-centring AC400 quick wheel clamps:
    – secure and consistent attachment owing to clutch limited clamping force
    – securely attach the tyre without contacting the rim
    – large, comfortable handle allows ergonomic use
    – durable and lightweight magnesium construction
    – tyre diameter range 19″ – 39″
  • Pro42 PLATINUM user software: a high-resolution ICON-based software program, with ALL the required functions in a one-touch program format, to provide unique DIAGNOSTIC information
  • Measurement features such as camber, caster, toe, max. steering angle, rolling radius, and cross diagonal measurement
  • ProAckermann, caster trail, scrub radius, and SAI
  • A-arm adjust
  • Cradle adjust
  • EZ Toe for easy toe adjustment of adjustment points difficult to access
  • EZ Access for measurement with demounted wheels
  • Quick alignment with audit print-out
  • Complete and up-to-date OEM specs
  • Integrated OEM procedures
  • Easy installation and flexible configuration
  • TIP (Target Imaging Pointer) for ride height measurement
  • Optional drive-on camera for easy positioning of the vehicle on the lift
  • Convenient mobility with optional mobility kit



Description

Features:

ASANETWORK:

It is a tool that allows equipment to be connected to a garage.
With the asanetwork all relevant information are made available at every workstation in the shop as all machines are connected to the commercial software.

AUTOMATIC VEHICLE HEIGHT TRACKING:

The camera system follows the height of the vehicle, eliminating the need to adjust the aligner when you move the lift.

EZ-TOE:

Turn the front wheels and access difficult adjustment points while still displaying centred toe readings.

TOUCHLESS AC400 WHEEL CLAMPING SYSTEM.

Fast and easy to use, it provides secure clamping without touching the rim. This patented technology allows accurate and repeatable results coupled with ease of use and durability. No accessories needed to accommodate the full range of tyre sizes.

ADVANCED DIMENSIONING.

Cross-diagonal measurements identify frame or structural damage.
Rolling Radius identify mismatched tyre sizes, a potential cause of vehicle pulling and drive train damage.

VODI™

Vehicle Orientation Directional Indicator (VODI) guides the technician through the measurement process. Reduces the amount of time spent walking back and forth from the vehicle to the aligner.

RIDE HEIGHT MEASUREMENT.

Measure ride height and obtain proper alignment specifications for those vehicles requiring it.

HELP VIDEOS.

View detailed videos of how to make needed adjustments to complete even the most complex tasks.

QUICK ALIGNMENT CHECK.

Quickly identifies if a car needs alignment. Audit printout allows dimensions and alignment to be shown on one simple page, perfect for collaboration with body shops.
