John Bean V3300

Category:

Description

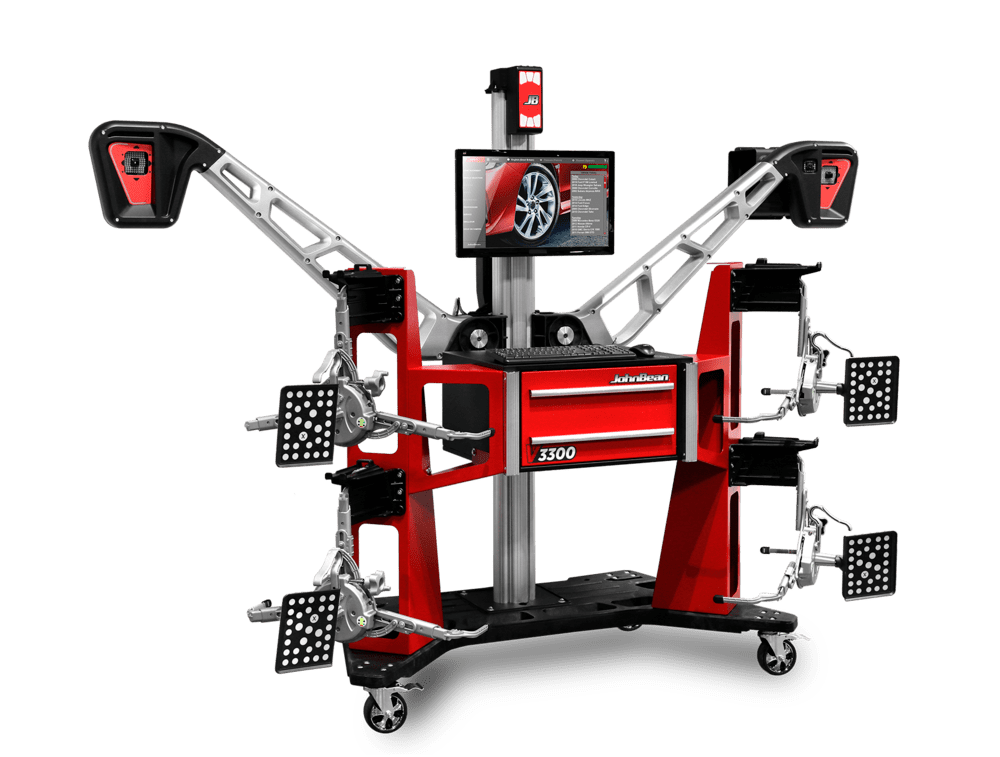

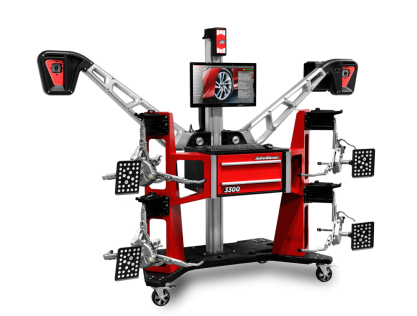

V3300 Diagnostic Wheel Alignment System



Work faster and smarter with the John Bean® V3300 Diagnostic Wheel Aligner.

The V3300 is a stand-alone wheel alignment system that utilises advanced technology to guide technicians of all skill levels through the wheel alignment process. We’ve combined the fastest camera system ever offered by John Bean with advanced notification alerts and clever software flow to reduce alignment errors, as well as decrease overall alignment time. This means you can push more alignments through with fewer errors; drastically increasing your productivity and boosting your revenue. The V3300 is the ultimate in wheel-alignment technology.

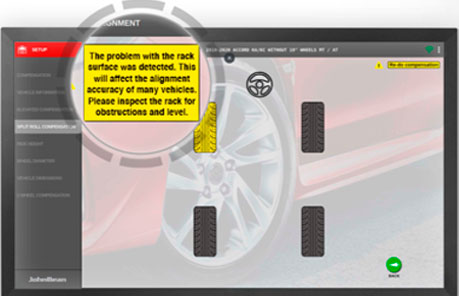

Avoid Errors

The advanced notification system on the V3300 instantly recognizes any error made during the alignment process and allows technicians to instantly correct the error during the alignment operation procedure. From suspension stress to uneven rack surfaces and loose components; the V3300 eliminates alignment errors and speeds up the entire alignment process.

Real-Time Support

Looking for real-time support? The V3300 goes beyond wheel alignment to offer critical, real-time data from OEM’s such as repair information, TSBs, recalls, and TPMS reset procedures. This means less time searching for resources to get the job done right and more time pushing alignments through your shop.

ADAS Integration

ADAS calibration is a consistent reality for modern shops that perform alignment procedures on their customer’s vehicles. Performing ADAS calibration accurately can be a constant source of productivity issues due to the sheer variety of procedures and the ever-changing OEM calibration requirements. The V3300 makes this task easy with real-time information on vehicle-specific ADAS procedures. Combine the V3300 with the John Bean Tru-Point™ recalibration system for ultimate productivity.

VERSIONS

V3300 AC400 (EEWAEU552B2)

V3300 AC400 TT (EEWAEU552B3)

V3300 AC100 (EEWAEU552H2)

V3300 AC100 TT (EEWAEU552H3)



FEATURES

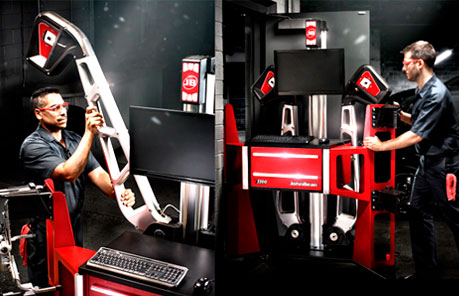

COMPACT CONSOLIDATED DESIGN

Efficient one-piece design with folding camera beam and integrated cabinet mobility allows the flexibility to move around the shop as needed.

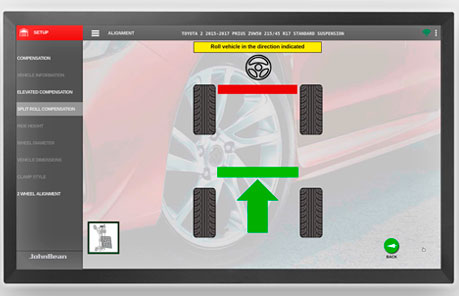

FAST COMPENSATION AND OPTIMISED ALIGNMENT FLOW

Streamline workflow with fast measurement compensation and an optimised alignment flow that enhances productivity by eliminating unnecessary steps in the alignment process.

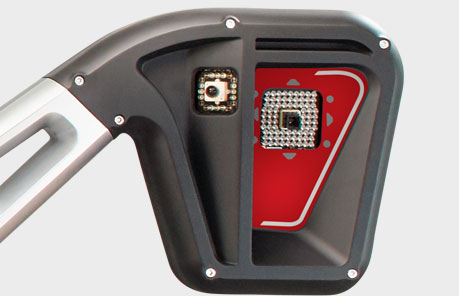

DRIVE-ON AID

Built-in camera that allows the operator to view the vehicle as it being driven onto the lift, ensuring proper loading for alignment procedures.

DRIVE-ON AID

Built-in camera that allows the operator to view the vehicle as it being driven onto the lift, ensuring proper loading for alignment procedures.

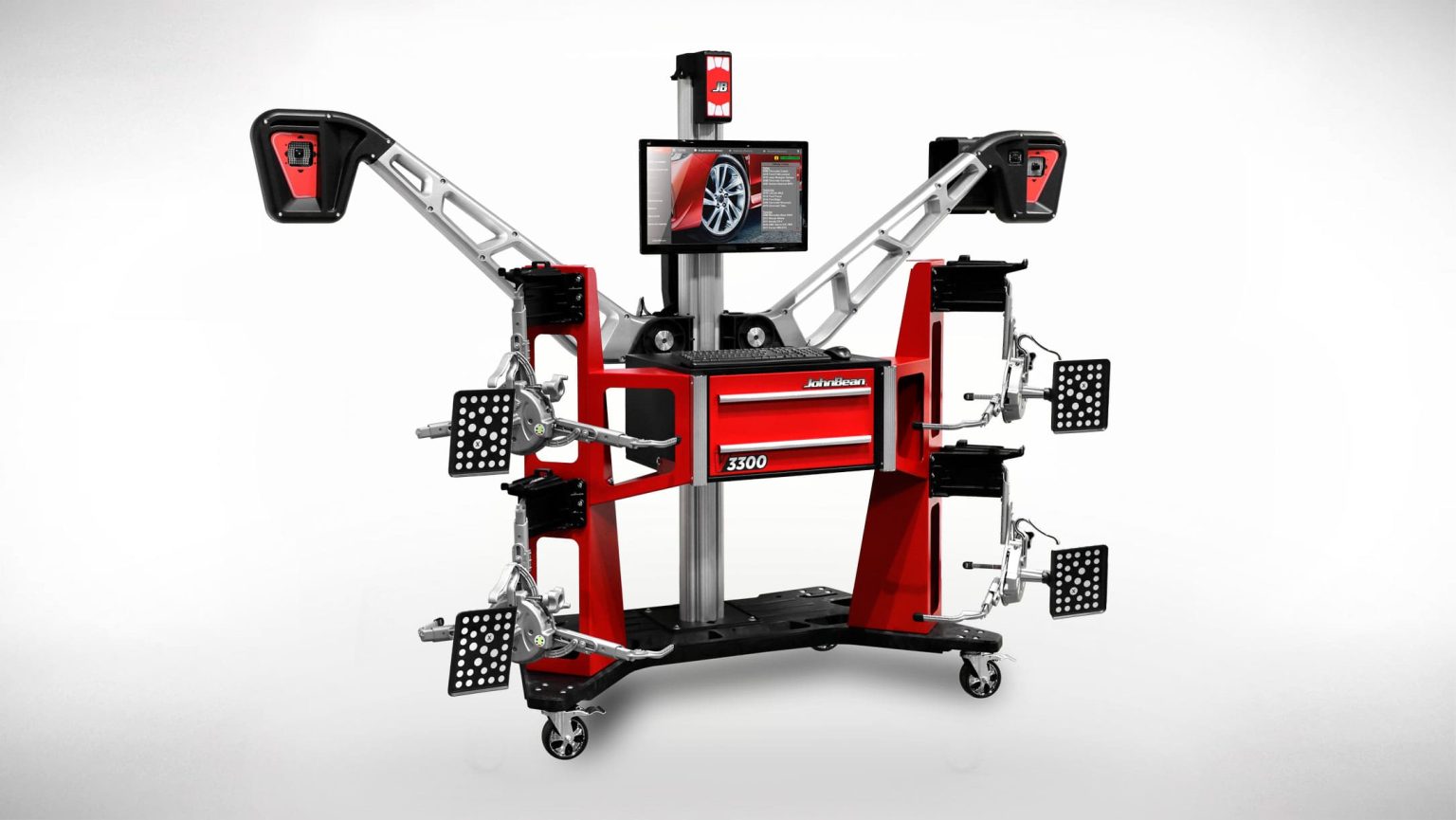

VIDEO: SEE IT IN ACTION

ADDITIONAL FEATURES:

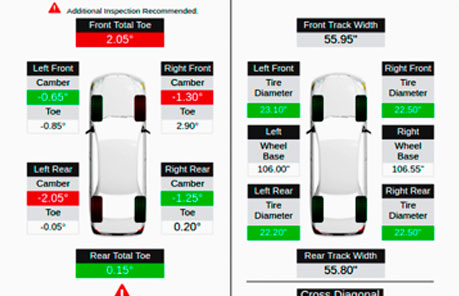

AUDIT MODE

Quickly uncover extra service opportunities with alignment audit reports. This report includes measurement of track width, front and rear toe, camber, wheelbase, wheel diameter, and cross dimensions.

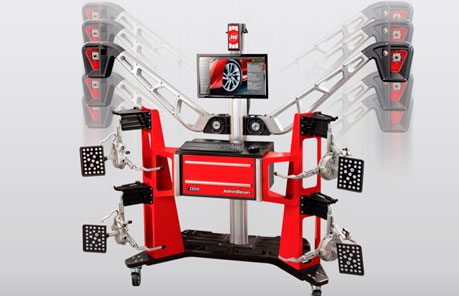

AUTO CAMERA TRACKING

Automatic camera tracking eliminates the need to readjust the camera after raising the lift, while a continuously calibrating third camera retains ultimate accuracy.

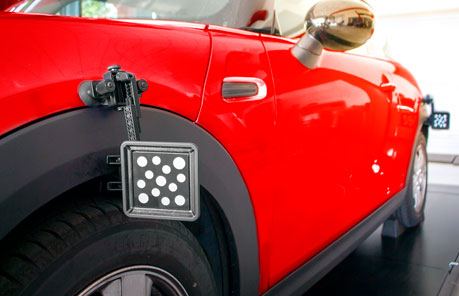

RIDE HEIGHT

Eliminate manual data entry, speed up measuring, and increase accuracy using our specially designed, optional Ride Height Targets.

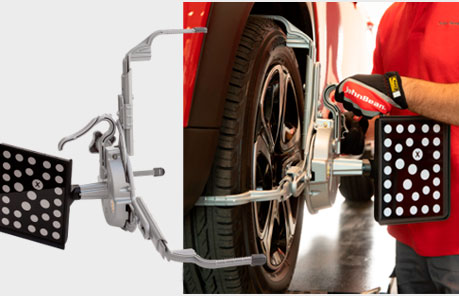

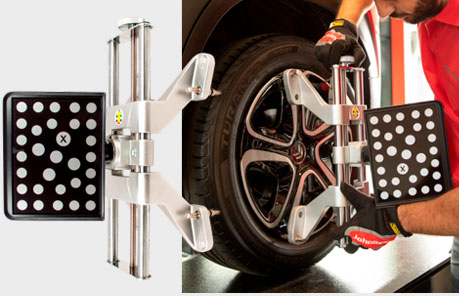

AC400 CLAMPS

The clamp attaches to the tyre with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.

AC100 CLAMPS

Fast and easy to use with self-centering design, two-sided claws provide reliable clamping, even over hub caps.
