Description

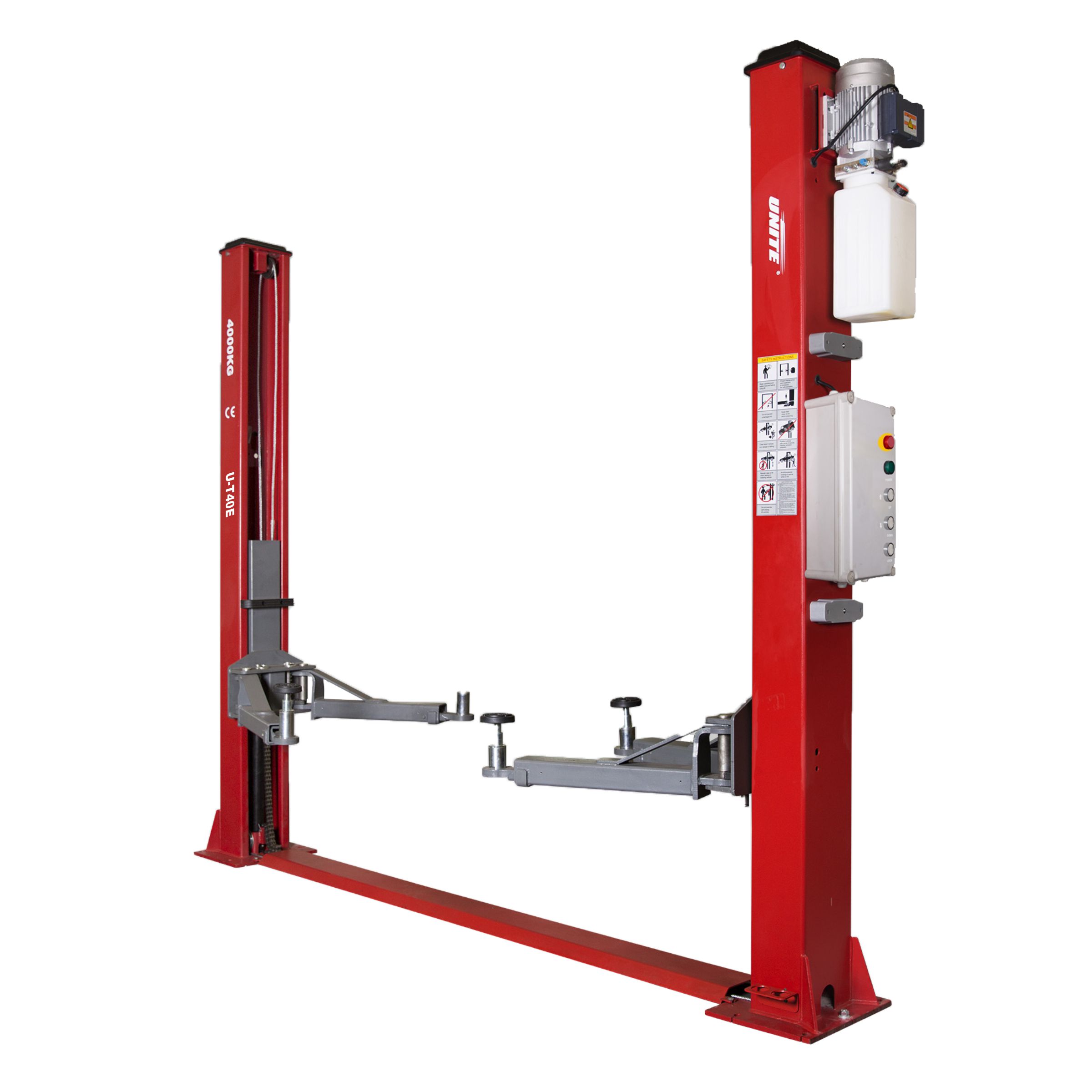

U-T40E Floor Cover Plate 4 Tones Capacity Two Post Vehicle Lift.

The U-T40E Two Post Vehicle Lift is a base-plate two-post lift designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm

Description: 2-Post Lift, 4 Tones Capacity, 75.2” Overall Height.

Safety Features:

1. Dual hydraulic cylinders

2. Safety valve for anti-explosion of hydraulic system

3. Synchronization cables

4. Chain protector

5. Easy access grease nipple design

6. Dust protection

Additional Information.

Product: Floor Cover Plate Two Post Vehicle Lift

Product Code: U-T40E

Capacity: 4 Tones

Lifting height: 1910 mm 75.2″

Min height: 110 mm 4.3″

Max car width: 2616 mm 103″

Power supply: 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW

Release: Electric Lock Release

Download Product Brochure:

U-T40E
