SIMPLEX MEDIUM

Parts washers with rotary basket, plc and touchscreen P100 & 120cm Diameter

Simplex performs the successful automatic washing of medium and large size mechanical parts.

Washing is carried out by the action of upper, lower and side nozzles. The slow rotation of the platform is ensured by a gear motor with a torque limiter. A PLC management enables numberless customisations thanks to a wide range of accessories.

Details:

Simplex 100 and Simplex 120 parts washers are designed for medium size parts washing.

Operators place parts in the basket, close the cover and start the automatic process.

A gear motor slowly turns the basket and the pump sprays the washing liquid over the parts throughout by spray nozzles.

Degreasing chemical products mixed with water in low percentage, the temperature and the liquid pressure ensure an appropriate washing of parts.

On the switchboard can be set all machine parameters (temperatures, heating starting and washing times) through a colour touchscreen display, and displayed the machine alarms and warnings as well as monitored the washing process status-flow.

Simplex 100 and Simplex 120 parts washers can be equipped with a large number of accessories available such as compressed-air blowing, hot-air drying, high pressure pump, tank emptying pump and many others.

Simplex 100 and Simplex 120 parts washers are equipped with standard steam extraction to avoid operators being damaged from an excessive quantity of steam when the cover is opened.



What is included in each SIMPLEX MEDIUM:



  •     Timed electric exhaustion of steam
  •     Reinforced basket in electrically welded mesh with external border in galvanized steel
  •     Hatch closure assisted with gas springs and fastening hook
  •     Siemens® electric power parts
  •     4” color touchscreen display for settings and programs
  •     Aisi 304 stainless steel filter in pump intake
  •     Tank border gasket
  •     Structure and sheet metal in contact with liquid in Aisi 304 stainless steel
  •     Minimum level switch
  •     Safety limit switch on cover opening
  •     Stainless steel electric pump with special seals
  •     Weekly programming to start heating and deoiler (if installed)
  •     IP65 electrical system, management via PLC touchscreen (DGT V4)
  •     Heating of the liquid with stainless steel electric heating element
  •     Mechanical rotation of basket via gear motor
  •     Internal welding bleaching
  •     Aisi 304 stainless steel washing pipelines with professional stainless steel flat nozzles
  •     Drain valves for emptying tanks
  •     Manual water filling valve

High Temperature VERSION.

  •     Heat insulation with Aisi 430 stainless steel panels
  •     Safety limit switch with cover opening lock during cycles
  •     Panels under basket with grease and solids collection sump filters

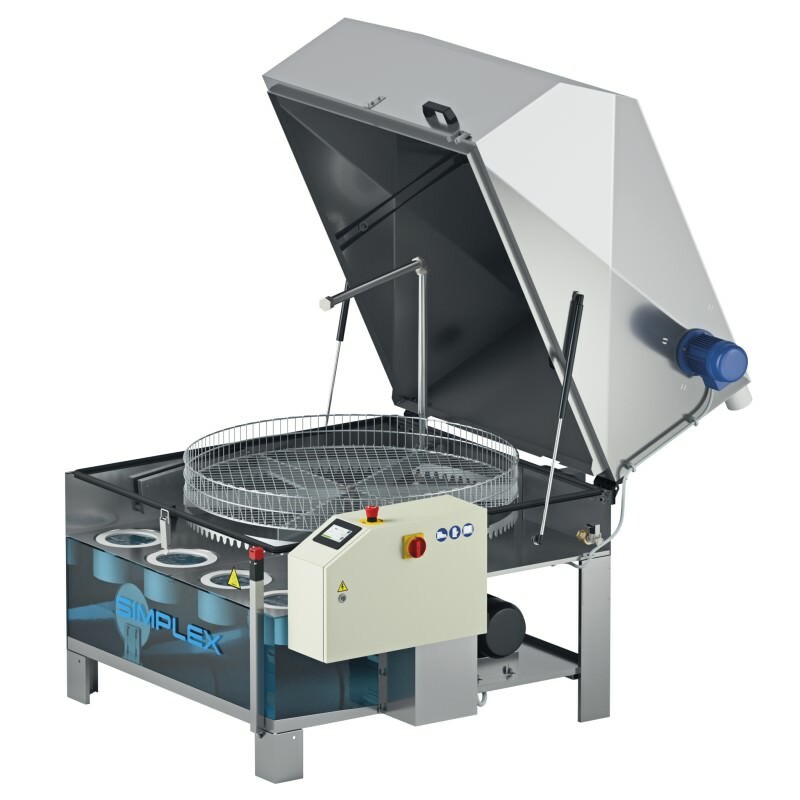

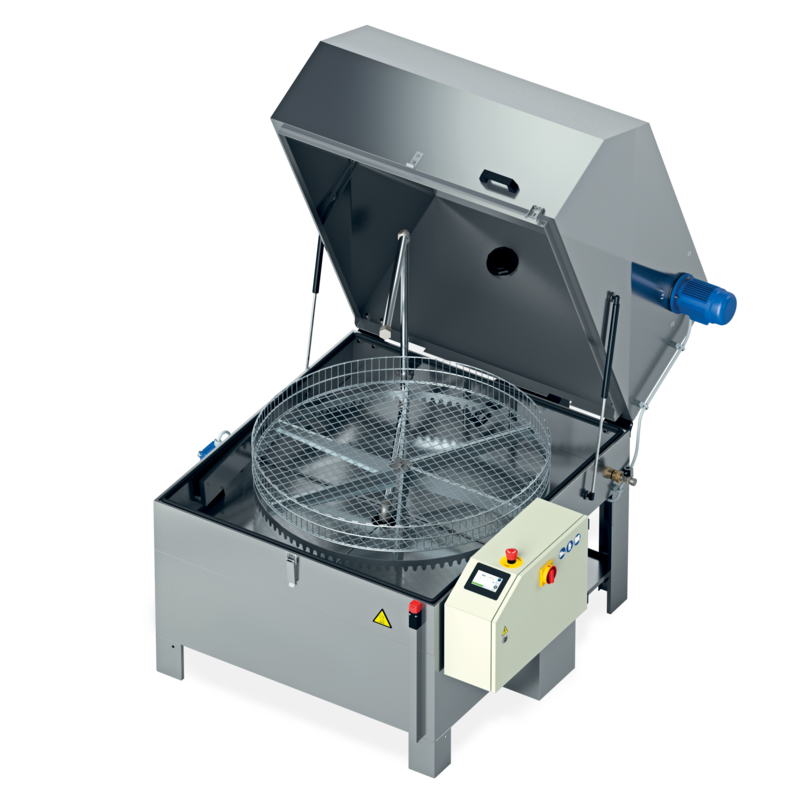

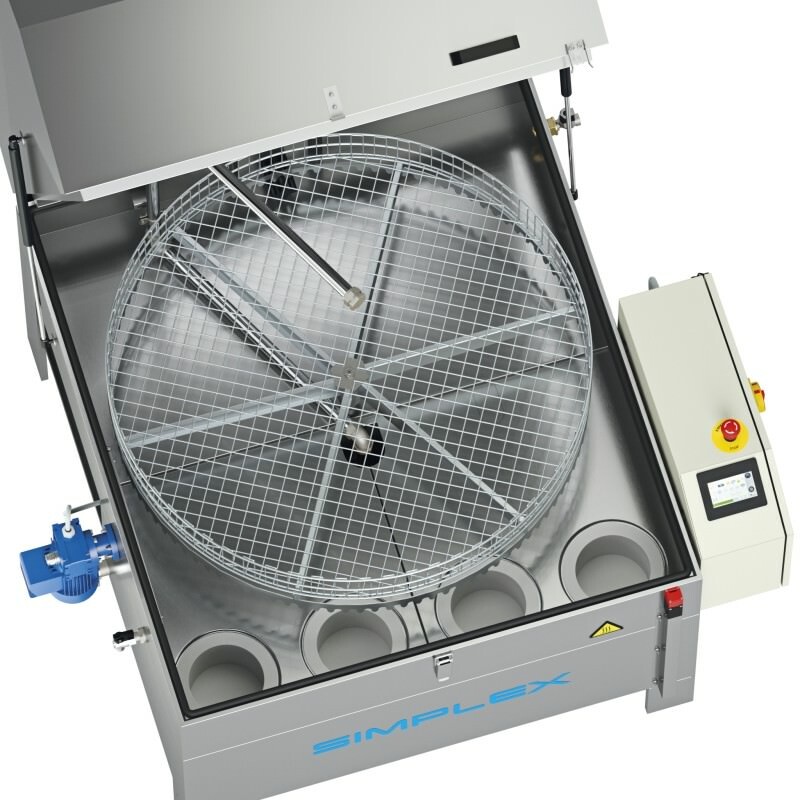

Product Images:
