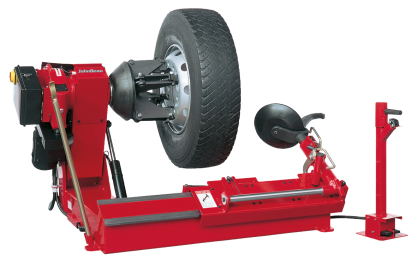

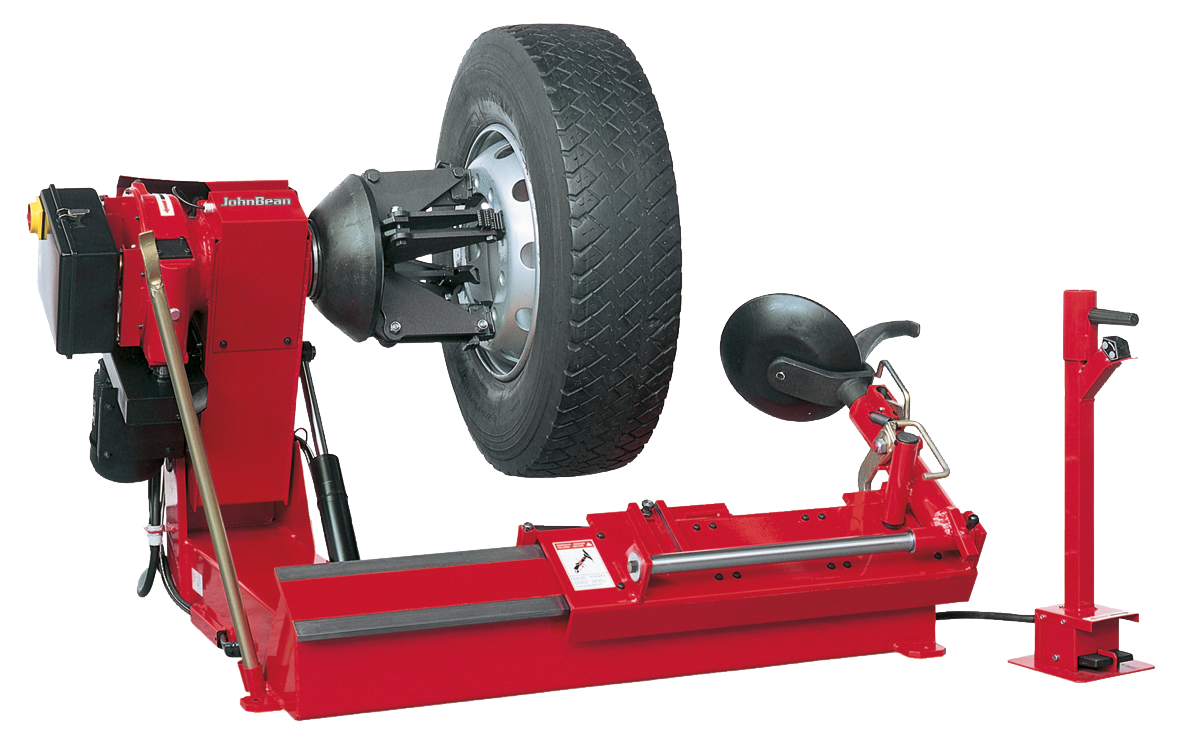

John Bean 8026 Truck Tyre Changer

Product description:
The John Bean T8026 truck tyre changer for tubeless and tube type wheels features quick-fit aluminium protectors and permanent vertical plastic protectors on the jaws to help prevent accidental damage to the rims. This superbly engineered machine also features an easy-to-use two-way tool for bead-breaking, mounting and demounting.

Get flyer here

Categories: ,

Description

Key Features:

  • Truck tyre changer to mount and demount truck and bus tyres from drop centre and split ring rims
  • Electro-hydraulic drive
  • Mobile control unit
  • Positioning of wheel and tool within a wide accurate adjustment range
  • Infinitely self-centring universal hydraulic chuck
  • Bead breaker roll and mounting/demounting tool fitted on swing arm
  • Safety valve on chuck prevents accidental unclamping of wheels
  • Ergonomic operation owing to vertically adjustable control unit



Technical Features:

Clamping range (inch) 14 – 26
Wheel width max. (inch) 27.5
Wheel diameter max. (mm) 1500
Wheel weight max. (kg) 1000
Bead breaker force (kN) 27
Chuck speed (rpm) 7
Torque max. (Nm) 1000
Power supply 400 VAC 3ph 50Hz
Width (mm) 1670
Depth (mm) 1400
Height (mm) 840
Noise level (dB (A)) < 70
Weight (kg) 550
