Automotive Diagnostic Kit

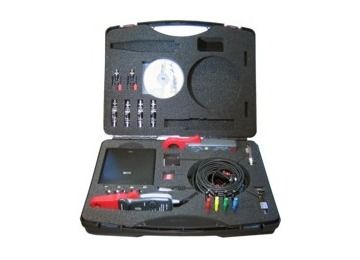

Motor management systems in cars get more and more sophisticated. When these sophisticated systems malfunction, sophisticated measuring equipment is required to locate the cause of the problem. With the TiePie engineering Automotive Diagnostics Kit, the automotive specialist obtains all necessary tools to perform most of the diagnostic tests to locate the problem, all conveniently packed in a protective case.


ATS5004D instrument manual

MultiChannel software manual

Brochure for Automotive diagnostics


Depending on the selected model, the Automotive Diagnostics Kit contains one of the following automotive oscilloscopes:

Qty Item Description
1    Automotive scope ATS610004D-XMSG  1 GS/s four channel automotive oscilloscope with differential / single ended switchable inputs with SafeGround protection, SureConnect, resistance measuring, 250 MHz bandwidth, 14 bit resolution and 256 MS memory.
1    Automotive scope ATS5004D  50 MS/s four channel automotive oscilloscope with differential inputs, SureConnect, resistance measuring, 50 MHz bandwidth, 12 bit resolution and 128 KS memory.

The rest contents of this versatile Automotive Diagnostics Kit are:

Qty  Item    Description
 4     Measure lead TP-C1812B  3 m long, BNC to banana, low noise differential measure lead.
 1    Back Probe TP-BP85 – Set   8 thin and flexible back probes, 1000 V CAT III with 4 mm banana socket.
 2    Ignition Pickup TP-IP250  Capacitive secondary ignition pickup to be clamped on a spark plug wire.
 1    Current clamp TP-CC80  80 A current clamp with 2% accuracy and 4 mm shrouded banana sockets.
 1     Current clamp TP-CC600  600 A current clamp with 3% accuracy and 4 mm banana sockets.
 1    Accelerometer TP-ACC20  Accelerometer with 2 axes, ±2 g range with 420 mV/g sensitivity.
 4     Differential attenuator TP-DA10  Differential 1:10 attenuator, rated 300 V with 25 MHz bandwidth.
 1    Alligator Clip TP-AC50B Set 5 alligator clips with 10 mm clamping range and 4 mm banana socket, rated for up to 60 V.
 1     ATIS Lite  Automotive Test and Information System is a comprehensive knowledge base with information to help the automotive technician diagnose car problems.
